80-197-0006

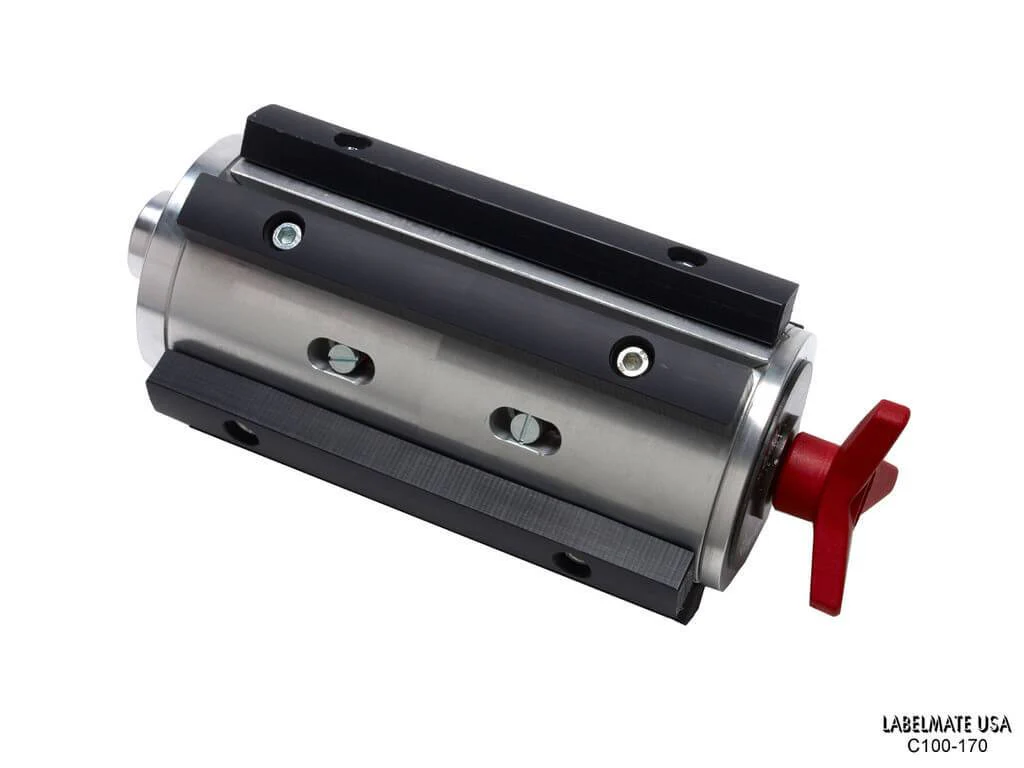

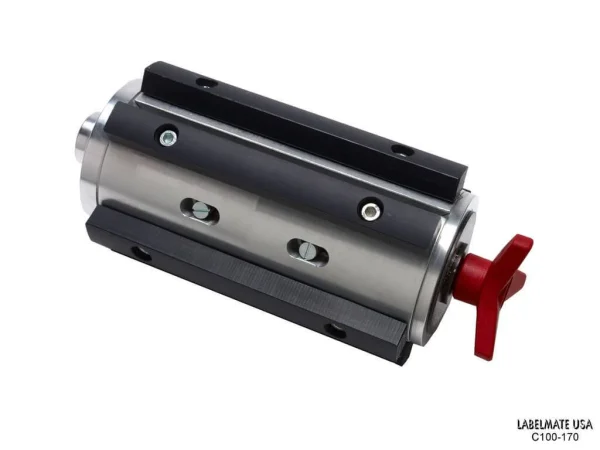

Mechanical Core-Chuck, 4” diameter, 6.7” Length.
- Core Diameter: 4″ (102mm)
- Length: 6.7” (170mm)
- Mounting: Setscrew, press fit
- Mounting Hole Diameter: 0.626” (15.9mm)
- Mounting Hole Depth: 1.33” (34mm)
- Composition: Anodized Aluminum
- Warranty: 3 Year Parts and Labor Limited Warranty
Description
This spring-loaded mechanical “Quick-Chuck” makes loading and unloading large rolls virtually effortless. The Chuck tightly grips the inside of the core while the roll is wound. Simply turn the knob clockwise (right) to expand/tighten the Chuck, and counterclockwise (left) to contract/release the Chuck. This “Quick-Chuck” fits precisely on a 0.625” (15.875mm) motor shaft. A setscrew locks the Chuck to the flat on the shaft.
Shipping Information
- Size: 14”x6”x6” (355x152x152mm)
- Weight: 5 lbs. (2.27 kg)
