Description

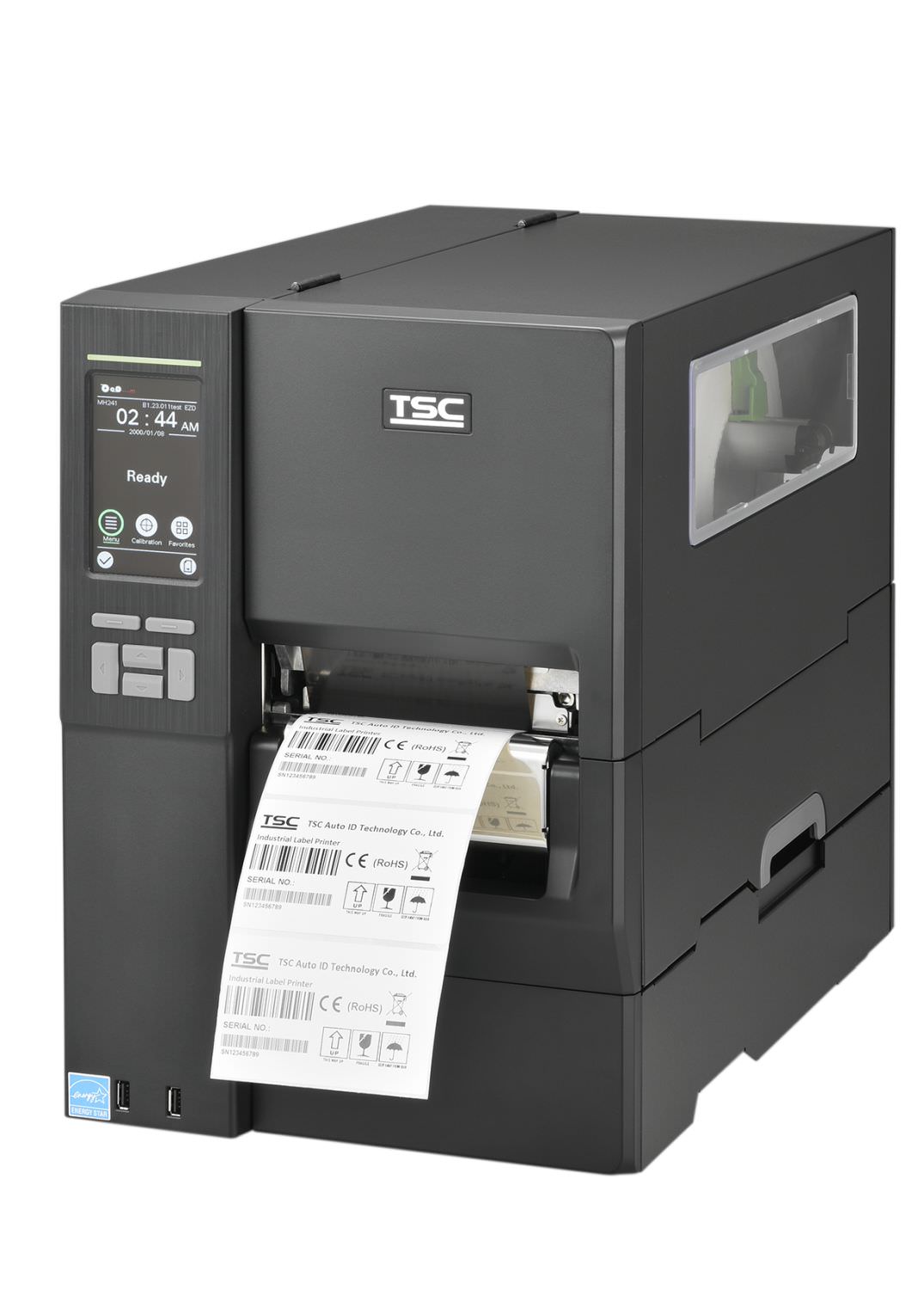

The MH641 Series is TSC’s mainstream industrial barcode label printer. The MH241 Series features premium printhead technology, faster processing and all the memory customers will need to print high quality labels delivered at the fastest speeds.
Internal Rewinder standard
Applications
- Industrial-duty Printing
- Compliance Labelling
- Work In Process
- Order Fulfillment
- Distribution
- Shipping/ Receiving
- Healthcare Labelling and Patient Safety
- Ticketing
- Electronics & Jewellery Labelling
Specifications
| Model | Printing Method | Resolution | Max. Print Width | Max. Print Length | Max. Print Speed |
| MH241T/MH241P | Thermal Transfer | 203 dpi | 4.09″ | 1000″ | 14 ips |
| MH341T/MH341P | Thermal Transfer | 300 dpi | 4.09″ | 450″ | 12 ips |
| MH641T/MH641P | Thermal Transfer | 600 dpi | 4.09″ | 100″ | 6 ips |
Key Features
- “Thermal Smart Control” print technology produces cleanest, high quality barcodes
- Up to 356 mm (14”) per sec. print speed
- Easy to operate with the new GUI design on display
- 3.5” colour LCD with 6-button control for standard model or 4.3” colour touch LCD panel with 6-button control for advanced model
- Support 8” OD full roll internal rewinder (Only on MH240P/MH340P/MH640P)
- USB host interface for stand-alone applications
- Available in 203 dpi, 300 dpi and 600 dpi resolutions, firmware automatically detects printhead resolution and switches accordingly
- 600 meter ribbon supply
- microSD Flash memory expansion up to 32 GB
- Ribbon capacity and label near end monitor widget
- TSPL-EZ firmware for plug-n-play ease
- Options include: General purpose IO connectivity, internal Bluetooth module, slot-in 802.11 a/b/g/n wireless module kit, regular cutter
