Description

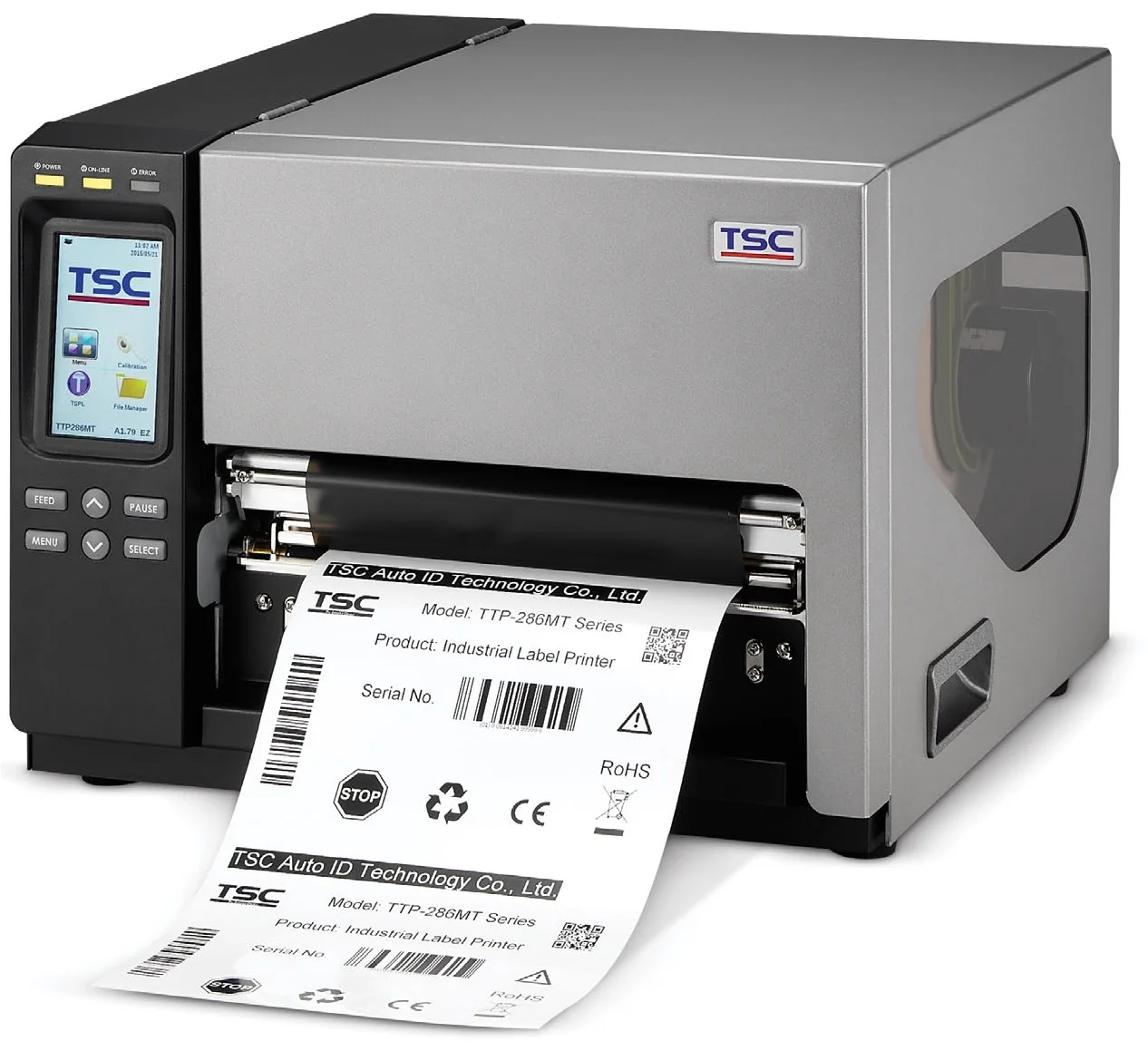

TSC TTP-286MT Thermal Transfer Printer 8′ (industrial) –
Affordable Performance in a ‘wide-format’ Printer – Now with High Speed and Color Touch Display
The affordable and easy-to-use wide-format thermal transfer printer is ideally suited for compliance labeling, brand marketing, inventory control, drum labeling, warning signs and a host of other signage solutions. The TTP-286MT Series features two models to meet your wide format labeling needs:
TTP-286MT – 203 dpi resolution, 8.5” print width, 152 mm (6”)/second print speed.
- 4.3” touch LCD display with 6-button menus
- Ethernet, USB 2.0, serial, parallel and USB Host*1 connectivity are standard.

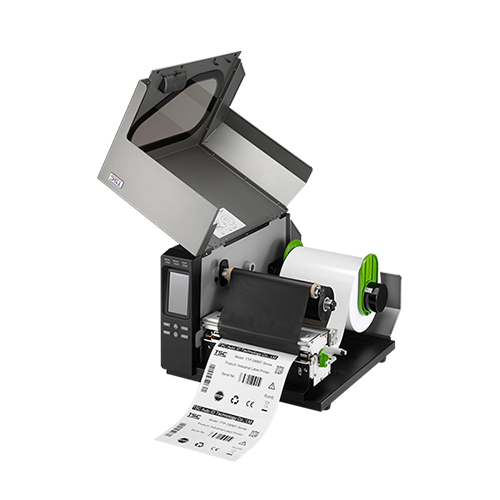

- Die-cast chassis, sheet metal structure with clear media view window
- Can manage label widths up to 241.3 mm (9.5”) with a maximum print width up to 219.5 mm (8.64”) wide at 300 dpi high resolution
- 600 meter ribbon supply
- 512 MB Flash and 256 MB SDRAM memory
- SD Flash memory expansion up to 32 GB
- Up to 6” per sec. print speed for 203 dpi, and 4” per sec. print speed for 300 dpi
- Powerful basic programming tools
- Options include: GPIO connectivity, Bluetooth module, and cutter module
| Model | Printing Method | Resolution | Max. Print Width | Max. Print Length | Max. Print Speed |
| TTP-286MT | Thermal Transfer | 203 dpi | 8.5″ | 450″ | 6 ips |
| TTP-384MT | Thermal Transfer | 300 dpi | 8.64″ | 200″ | 4 ips |
