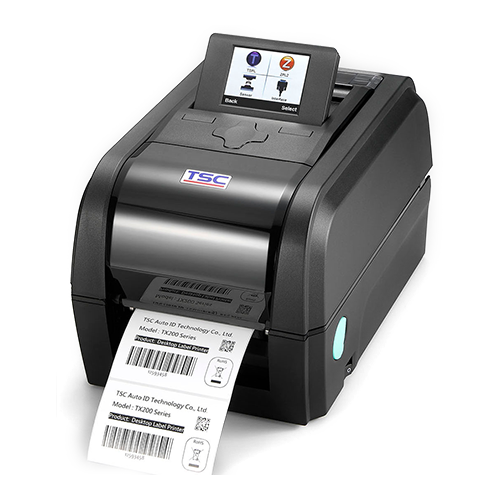

TSC TX210 Thermal Transfer Printer 4″ (Desk Top)
High Performance for a New Generation
The TX Series of thermal transfer desktop barcode printers supports more printing applications than any other printer in its class. With three models available, the four-inch wide TX Series (TX-210, TX310 & TX-610) can address everything from higher volume 4 x 6 shipping labels, higher resolution product marking and graphic solutions, to high-resolution labels used in electronics marking applications.
Models in the TX Series include:
TX210 – 203 dpi resolution with print speeds up to 8 inches per second
TX310 – 300 dpi resolution with print speeds up to 6 inches per second
TX610 – 600 dpi printer featuring precise calibration and registration required for printing the smallest labels
| Model | Printing Method | Resolution | Max. Print Width | Max. Print Length | Max. Print Speed |
| TX210 | Thermal Transfer | 203 dpi | 4.25″ | 1,000″ | 8 ips |
| TX310 | Thermal Transfer | 300 dpi | 4.17″ | 450″ | 6 ips |
| TX610 | Thermal Transfer | 600 dpi | 4.17″ | 100″ | 4 ips |
The TX series culminates 23 years of designing best-selling high-performance and durable desktop printers. The printers use a large 300-meter ribbon supply on a one-inch core that saves both time and money. The TX Series features a user-friendly spring-loaded centre-biased clam-shell design for easy drop-in media loading of 5-inch rolls of media. The printer construction features a rugged double-wall design that is stronger and more durable than other thermal transfer mechanisms on the market. Its strong motor is powerful enough to handle a 300-meter-long ribbon.
Standard interfaces include USB 2.0, USB-A Host, 10/100 Mbps Ethernet and Serial connectivity. Optional communications interfaces include Bluetooth, 802.11a/b/g/n WiFi and Centronic Parallel. Printer options include a bright, colour LCD display, label peel and present, and cutter.
As with all TSC printers, the TX Series features the TSPL-EZ™ printer-control language, which is fully compatible with other TSC printer languages, while supporting TPLE (Translation Printer Language Eltron®) and TPLZ (Translation Printer Language Zebra®). The languages automatically decipher and translate the format of each label as it is sent to the printer. TSPL-EZ™ also features internal scalable True Type fonts (based on the Monotype® font engine), which are typically found only in more expensive printers.
- Up to 102 mm (4”) per sec. print speed
- 128 MB Flash memory and 128 MB SDRAM memory
- microSD Flash memory expansion up to 32 GB

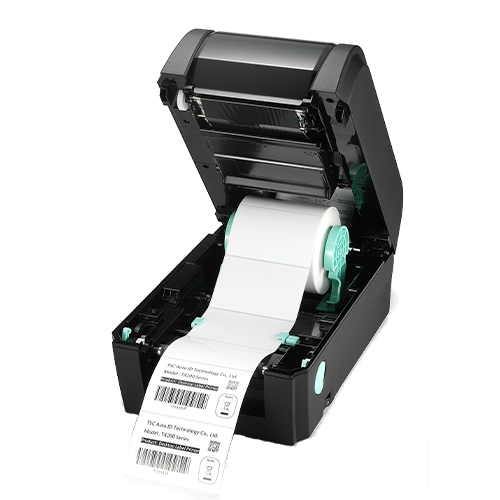

- User-friendly clamshell design
- Serial, internal Ethernet, USB 2.0 & USB host interfaces standard
- 3.5” color TFT Display (Standard for TX610, Optional for TX210 & TX310)
- Label capacity up to 127 mm (5”) OD
- Ribbon capacity up to 300 m (984’)
- TSPL-EZ™ firmware for plug-n-play ease
- Optional peel-off module, cutter module, external Bluetooth module, slot-in 802.11 a/b/g/n wireless module, stand-alone keyboard
- ENERGY STAR® qualified
