TSC TX210 Thermal Transfer Printer 4″ (Desk Top)
High Performance for a New Generation
The TX Series of thermal transfer desktop barcode printers supports more printing applications than any other printer in its class. With three models available, the four-inch wide TX Series (TX-210, TX310 & TX-610) can address everything from higher volume 4 x 6 shipping labels, higher resolution product marking and graphic solutions, to high-resolution labels used in electronics marking applications.
Models in the TX Series include:
TX210 – 203 dpi resolution with print speeds up to 8 inches per second
TX310 – 300 dpi resolution with print speeds up to 6 inches per second
TX610 – 600 dpi printer featuring precise calibration and registration required for printing the smallest labels
Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TX210 Thermal Transfer 203 dpi 4.25″ 1,000″ 8 ips
TX310 Thermal Transfer 300 dpi 4.17″ 450″ 6 ips
TX610 Thermal Transfer 600 dpi 4.17″ 100″ 4 ips
The TX series culminates 23 years of designing best-selling high-performance and durable desktop printers. The printers use a large 300-meter ribbon supply on a one-inch core that saves both time and money. The TX Series features a user-friendly spring-loaded centre-biased clam-shell design for easy drop-in media loading of 5-inch rolls of media. The printer construction features a rugged double-wall design that is stronger and more durable than other thermal transfer mechanisms on the market. Its strong motor is powerful enough to handle a 300-meter-long ribbon.
Standard interfaces include USB 2.0, USB-A Host, 10/100 Mbps Ethernet and Serial connectivity. Optional communications interfaces include Bluetooth, 802.11a/b/g/n WiFi and Centronic Parallel. Printer options include a bright, colour LCD display, label peel and present, and cutter.
As with all TSC printers, the TX Series features the TSPL-EZ™ printer-control language, which is fully compatible with other TSC printer languages, while supporting TPLE (Translation Printer Language Eltron®) and TPLZ (Translation Printer Language Zebra®). The languages automatically decipher and translate the format of each label as it is sent to the printer. TSPL-EZ™ also features internal scalable True Type fonts (based on the Monotype® font engine), which are typically found only in more expensive printers.
Up to 102 mm (4”) per sec. print speed
128 MB Flash memory and 128 MB SDRAM memory
microSD Flash memory expansion up to 32 GB

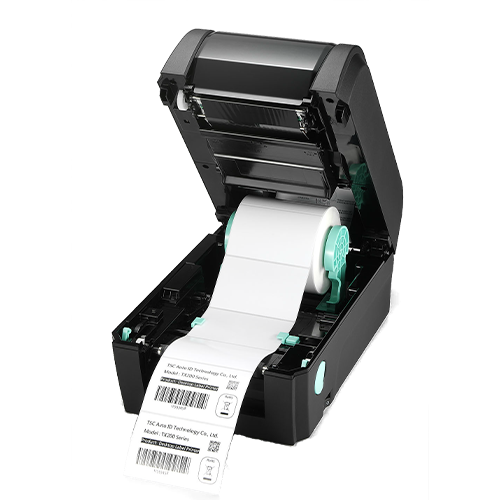

User-friendly clamshell design
Serial, internal Ethernet, USB 2.0 & USB host interfaces standard
Label capacity up to 127 mm (5”) OD
Ribbon capacity up to 300 m (984’)
TSPL-EZ™ firmware for plug-n-play ease
Optional peel-off module, cutter module, external Bluetooth module, slot-in 802.11 a/b/g/n wireless module, stand-alone keyboard
ENERGY STAR® qualified
