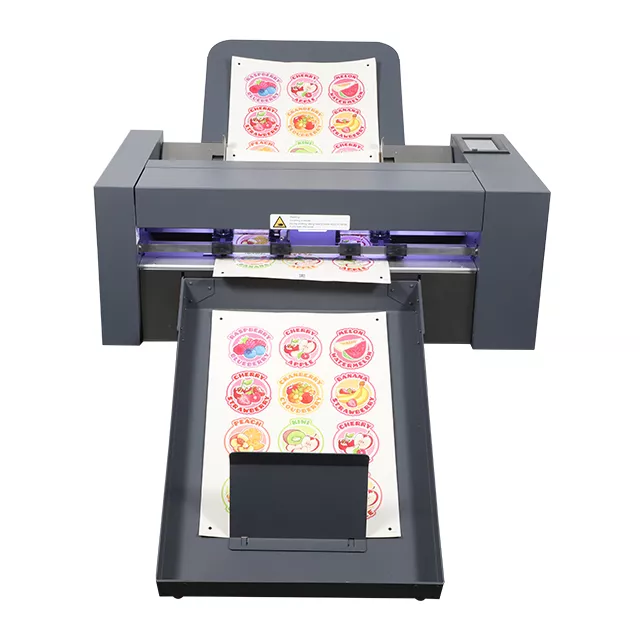

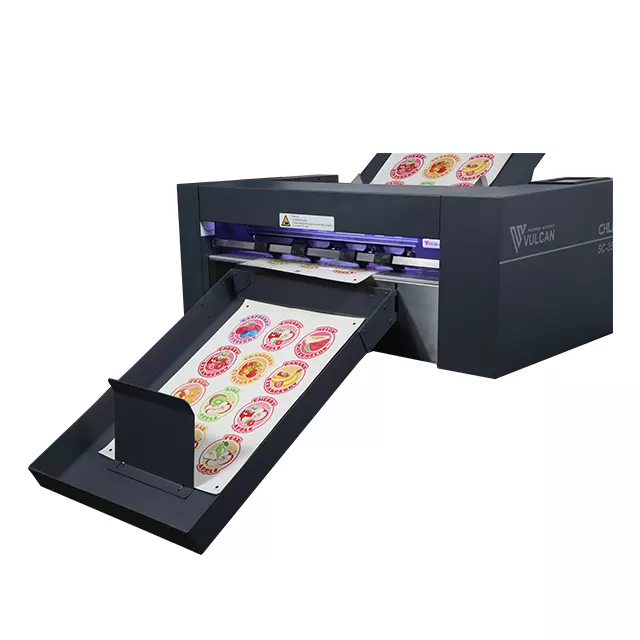

Vulcan SC-350 – Key Features & Specifications
Performance & Productivity
Stable and Fast Paper Feeding
-
Holds up to 300 sheets of A4 at once
-
Supports multiple sizes: A4, A3, A3+, Letter, Legal, Tabloid
-
Paper feeding time: as fast as 2 seconds per sheet
High Productivity
-
Sheet feed: ~2 seconds
-
CCD camera mark detection: ~4 seconds
-
Maximum cutting speed: 1200 mm/s
Multiple Data Transfer Options
-
USB cable
-
Network connection
-
U-Disk (USB thumb drive)
Advanced Cutting Technology
-
High-resolution camera registration system
-
Automatic QR-code job retrieval
Operating System Compatibility
-
Supports Windows and Mac
Free Firmware Upgrades
-
Regular updates provided at no cost
User-Friendly Touchscreen
-
Bright, intuitive interface with clear icons
-
Easy navigation and job control
-
Adjustable carriage speed control:
-
Fast (×10)
-
Slow (×1)
-
-
Dedicated Single Re-Cut button to instantly repeat the last job
Stable, High-Quality Carriage System
The carriage is one of the most critical moving components of any cutter. The SC-350 carriage is built using high-quality materials designed for heavy daily production use.
Vulcan engineers have addressed common heat build-up issues found in other designs, improving durability and long-term reliability.
-
Camera scans four registration marks in under 3 seconds
-
Sheet feed in under 3 seconds
-
Fast QR code recognition
This combination allows you to cut more sheets per hour with consistent accuracy.
High-Resolution Camera System
The SC-350 features a high-resolution camera for precise detection of registration marks as small as 5 mm.
-
Detects marks on coloured and transparent materials
-
Scans four marks in under 3 seconds
-
Allows smaller reg marks, reducing material waste
-
Improves overall production efficiency
QR-Code Workflow System
The SC-350 reads QR codes printed on media to automatically match print and cut files.
-
Eliminates file mismatch errors
-
Speeds up job setup
-
Ideal for multi-job production environments
Automatic Paper Feeding System
The unique feeding structure:
-
Holds up to 300 sheets (A4)
-
Supports A4, A3 and A3+
-
Prevents sheet shifting during operation
-
Maintains high cutting precision
-
Feeds each sheet in approximately 2 seconds

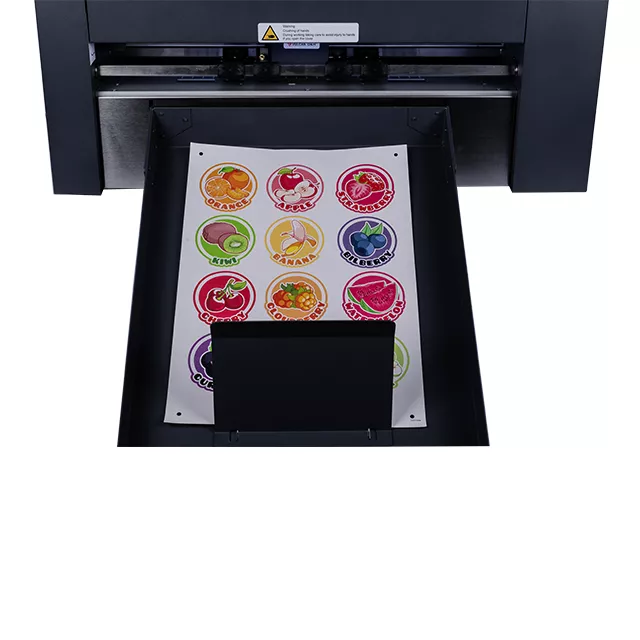

Large Capacity Exit Tray
-
Movable exit tray with adjustable sheet adapter
-
Easy to remove
-
40 mm depth
-
Holds up to 200 sheets (depending on material thickness)
LED Working Light
Integrated LED lighting ensures consistent illumination for accurate reading of QR codes and registration marks — even in varying external lighting conditions.
This improves reliability during unattended operation.
U-Disk (USB) Function
PLT files can be saved to a USB thumb drive and sent directly to the cutter.
-
No computer connection required
-
Ideal for simple or repeat production runs
Network Interface
-
Stable long-distance communication
-
Control one cutter from multiple computers
-
Control multiple cutters from a single computer
SignCut Pro Software
The SC-350 is supported by SignCut Pro 2, a powerful standalone cutting software.
Workflow:
-
Create artwork in CorelDRAW or Adobe Illustrator
-
Use the SignCut plugin to generate registration marks
-
Send cutting files to the SC-350 via SignCut Pro
-
Files remain accurate with no distortion
SignCut also includes SignCut Draw, a free professional design tool for creating complex graphics.
