80-203-0111

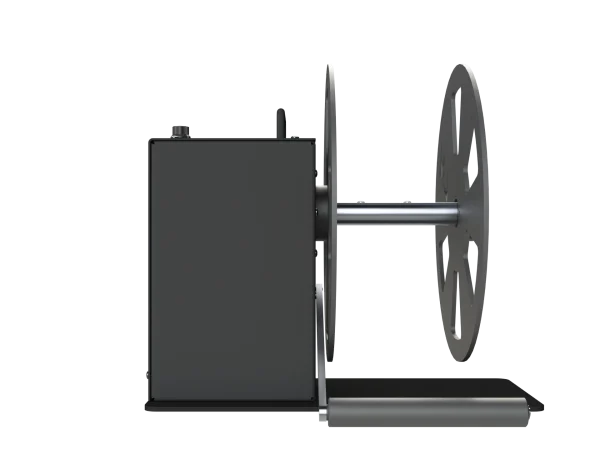

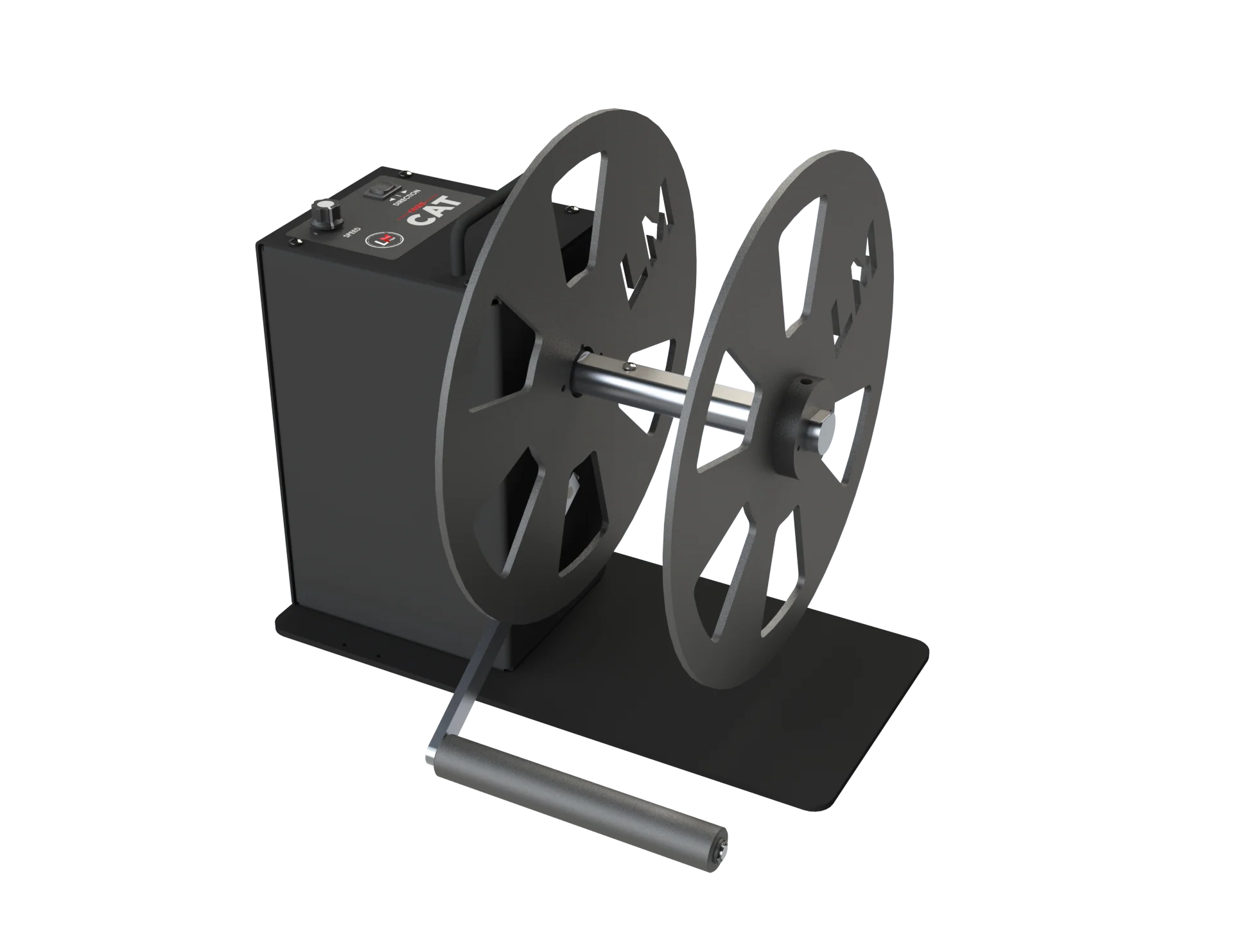

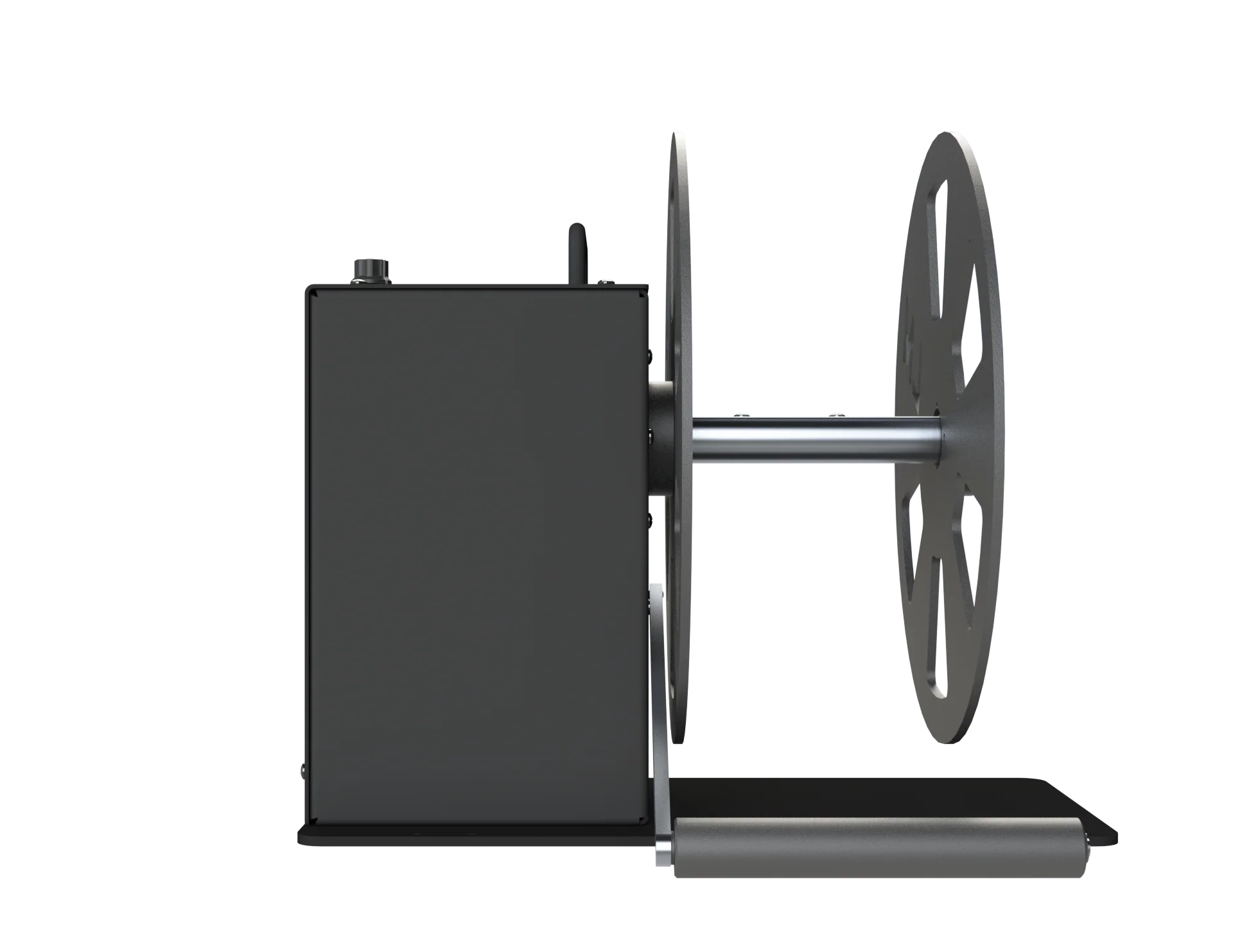

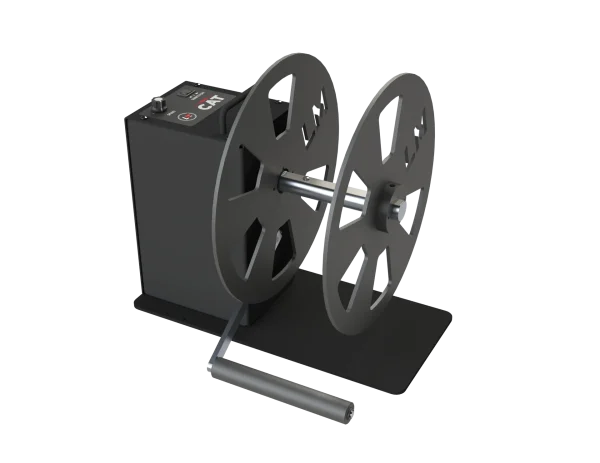

Universal “Smart” Rewinder/Unwinder for media up to 6.5” wide.
- Max. Roll Diameter: 12” (305mm)
- Core Diameter: 1” (25mm)
- Core Holder: Fin-Style
- Max. Media Width: 6.5” (165mm)
- Bi-directional “smart” Rewinder/Unwinder – Synchronized with Printer
- Automatic responsive speed control – Synchronized with Printer
- Three (3) switch-selectable Tension Arm settings (Standard, Sync, and Bypass)
- Speed up to 300 inches/sec (7,620mm/sec)
- Automatic stop at end of roll
- Full 5-Year Parts & Labor Limited Warranty
Description
The new OMNI-CAT Rewinder/Unwinder is the most intelligent and universal Winder in the LABELMATE product line, and can function as either a Rewinder or an Unwinder. The OMNI-CAT synchronizes with the printer and automatically and intuitively changes direction with the printer without the need of any operator intervention. This makes the OMNI-CAT the ideal companion for printers that back-feed or that are tension-sensitive. The OMNI-CAT also senses when the end of roll is reached and automatically stops rewinding.
The OMNI-CAT includes three (3) switch-selectable settings for the Tension Arm: Standard, Sync, and Bypass. Standard mode provides the most tension, thereby yielding a tighter finish-roll; Sync mode decreases the tension felt by the printer to virtually nothing; and Bypass mode deactivates the Tension Arm completely.
In the event even more tension is desired, an optional Tensioning Roller Assembly can be added to the Winder to achieve a near-factory quality finish-roll. The Tensioning Roller Assembly firmly tightens the finish-roll without placing any stress on the printer.
The rugged, heavy-duty steel construction of the OMNI-CAT enables it to withstand the most strenuous production environments. With various core sizes, label widths, roll diameters and options to choose from, there is a OMNI-CAT Winder to fit virtually any job you may have.
Videos
Shipping Information
- Size: 20”x20”x11” (508x508x280mm)
- Weight: 28 lbs. (12.7 kg)
