Item #: 80-203-0108

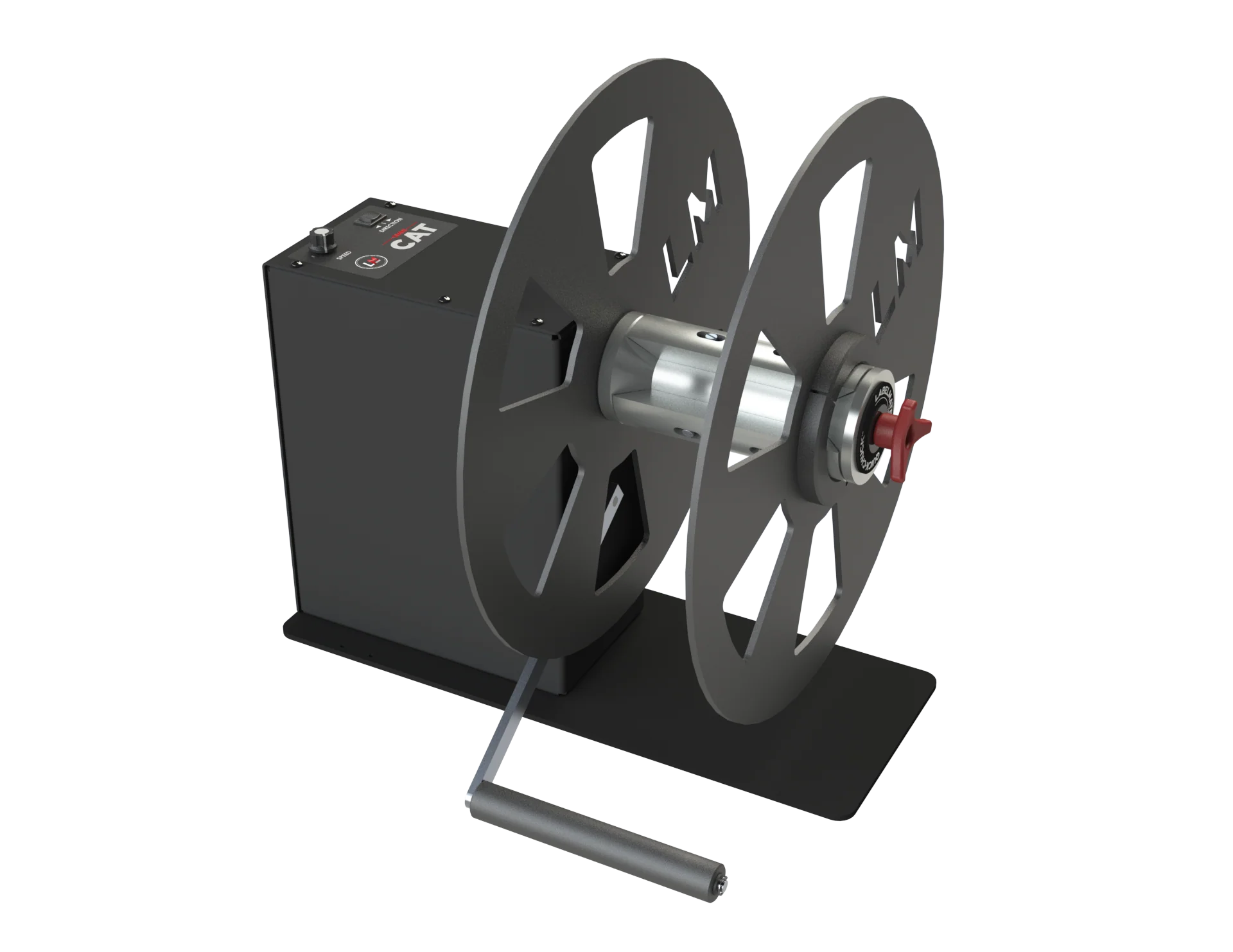

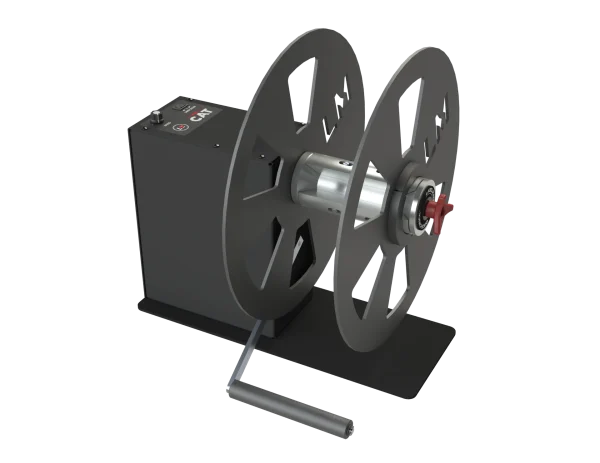

High Torque Rewinder with Sensor Arm, for media up to 6.5″ wide, and roll diameters up to 16″.
- Max. Roll Diameter: 16″ (406mm)
- Core Diameter: 3″ (76mm)
- Core Holder: Mechanical Chuck
- Max. Media Width: 6.5″ (165mm)
- Three (3) switch-selectable Tension Arm settings (Standard, Sync, and Bypass)
- Speed up to 92 inches/sec (2,336m/sec)
- Automatic stop at end of roll
- Full 5-Year Parts & Labor Limited Warranty
Description
The new OMNI-CAT-XL Rewinder/Unwinder is the most intelligent and universal Winder in the LABELMATE product line, and can function as either a Rewinder or an Unwinder. The OMNI-CAT-XL synchronizes with the printer and automatically and intuitively changes direction with the printer without the need of any operator intervention. This makes the OMNI-CAT-XL the ideal companion for printers that back-feed or that are tension-sensitive. The OMNI-CAT-XL also senses when the end of roll is reached and automatically stops rewinding.
The OMNI-CAT-XL includes three (3) switch-selectable settings for the Tension Arm: Standard, Sync, and Bypass. Standard mode provides the most tension, thereby yielding a tighter finish-roll; Sync mode decreases the tension felt by the printer to virtually nothing; and Bypass mode deactivates the Tension Arm completely.
In the event even more tension is desired, an optional Tensioning Roller Assembly can be added to the Winder to achieve a near-factory quality finish-roll. The Tensioning Roller Assembly firmly tightens the finish-roll without placing any stress on the printer.
The rugged, heavy-duty steel construction of the OMNI-CAT-XL enables it to withstand the most strenuous production environments. With various core sizes, label widths, roll diameters and options to choose from, there is a OMNI-CAT-XL Winder to fit virtually any job you may have.
Shipping Information
- Size: 20″×20″×12″ (508x508x305mm)
- Weight: 35 lbs. (15.9-kg)
